by Admin | Jun 18, 2016 | Our Instruments, Sensor Simulators
NID-1100 Rotor Speed Simulator is a battery operated, handheld instrument which is used to electronically simulate outputs from various types of RPM sensors and transmitters in the range from 1.0 RPM to 60,000 RPM. NID-1100 uses a menu-driven, 1.8″ TFT display (160×128 pixel, 18-bit colors) to establish appropriate settings. The key panel contains five sealed switches: Up Arrow, Down Arrow, E (Enter), Run/Stop and On/Off. The operating modes are: Manual and Automatic. In Manual mode, the user can select the desired RPM value and the type of Output. Using Start/Stop key, the user can Start or Stop the output generation. During the generation of RPM output, the user can continually (On-line) increase or decrease the RPM value using Up or Down arrow. In Automatic Mode, the user can select the nominal RPM, desired acceleration time (for RPM from zero to nominal), steady state time for nominal RPM and deceleration time (for RPM from nominal to zero), in range from 1.0 sec to 999.0 sec. Using Start/Stop key, the user can Start or Stop the programed output generation. The user can select the Output signal from the following: RPM Tachometer Output (TTL Level), RPM Proximity Probe Output (powered by +24VDC), RPM Proximity Probe Output (powered by -24VDC), RPM OSO® Output. Electric connection with DUT (Device Under Test) is established over the front mounted LEMO (ODU) Connector. Optical connection with DUT is established over the OSO (Optical Speed Output) front mounted LED. Features Datasheet Software User Manual Specification Price Easy to use, menu-driven operation Simulates various RPM sensors output Manual and Automatic Operating Modes Output Range: 1.0 RPM to 60.000 RPM...
by Admin | Jun 17, 2016 | Other Products

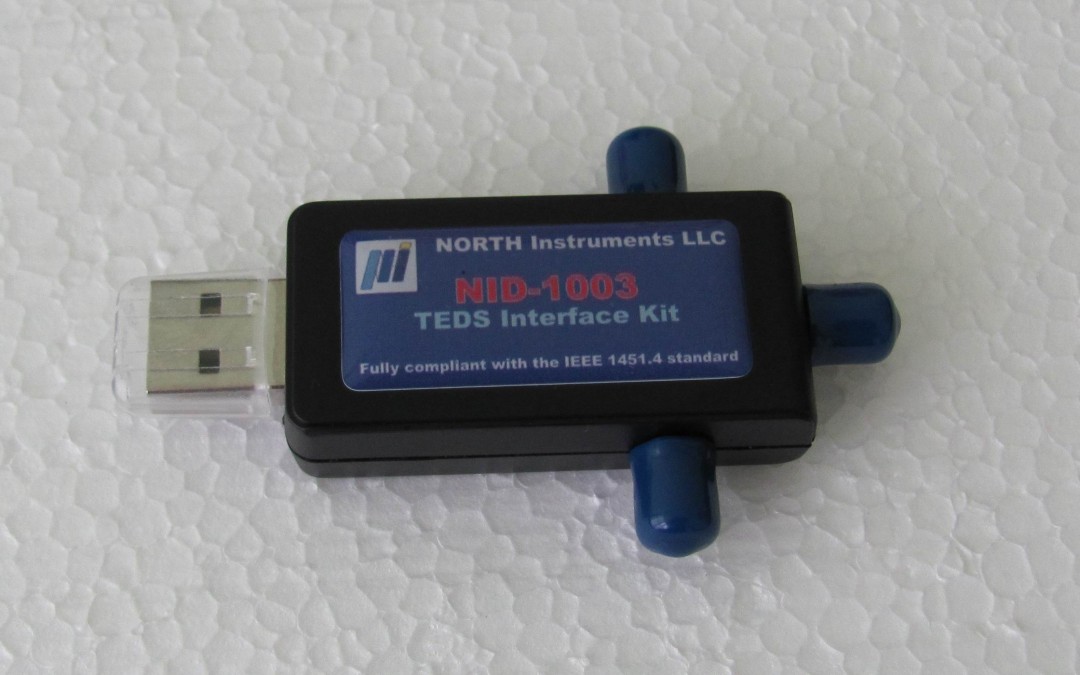

NID-1001/NID-1003 TEDS Interface Kit is a PC based TEDS Interface Kit. It can be used to read or write TEDS information in supported TEDS sensors. Software covers ISO/IEC/IEEE 21451-4:2010 standard for smart transducers interface. It is designed to read/write TEDS information using the mixed mode communication. Interface Kit supports all standard Templates according to the ISO/IEC/IEEE 21451-4:2010 standard. Non-standard Templates can be easily added upon the customer request. TEDS Interface Kit is Plug & Play, USB powered from PC. PC software is easy to use, with an upgrade possibility. The sensor information can be also stored to the file. Standard interface kit includes: hardware and software with two Templates upon the customer request. Features Datasheet Software User Manual Specification Price Triaxial accelerometer support Reading TEDS information from the sensor Allows updating of sensor calibration data All IEPE TEDS sensors are supported Supports ISO/IEC/IEEE 21451-4:2010 PC based, user-friendly software USB powered, plug and play NID-100x datasheet v1.1 – Letter NID-100X Software 2.0.1012 – Inputs/Outputs PC connection: USB 2.0 Sensor connection: 10-32 Connectors (Microdot) Environmental Characteristics Temperature: Operating -10°C to +65°C Storage -18°C to +65°C Humidity: 95% R.H. maximum Physical characteristics Dimension: 68 mm x 25 mm x 13 mm Weight: 16 grams Case: Molded plastic case NID-1001: USD 450.00 NID-1003: USD...
